Tips & Tricks

Using Tor Browser with the development environment

We strongly encourage sources to use the Tor Browser when they access the Source Interface. Tor Browser is the easiest way for the average person to use Tor without making potentially catastrophic mistakes, makes disabling Javascript easy via the handy NoScript icon in the toolbar, and prevents state about the source’s browsing habits (including their use of SecureDrop) from being persisted to disk.

Since Tor Browser is based on an older version of Firefox (usually the current ESR release), it does not always render HTML/CSS the same as other browsers (especially more recent versions of browsers). Therefore, we recommend testing all changes to the web application in the Tor Browser instead of whatever browser you normally use for web development. Unfortunately, it is not possible to access the local development servers by default, due to Tor Browser’s proxy configuration.

To test the development environment in Tor Browser, you need to add an exception to allow Tor Browser to access localhost:

  1. Open the “Tor Browser” menu and click “Preferences…”
  2. Choose the “Advanced” section and the “Network” subtab under it
  3. In the “Connection” section, click “Settings…”
  4. In the text box labeled “No Proxy for:”, enter 127.0.0.1
    • Note: for some reason, localhost doesn’t work here.
  5. Click “Ok” and close the Preferences window

You should now be able to access the development server in the Tor Browser by navigating to 127.0.0.1:8080 and 127.0.0.1:8081.

Upgrading or Adding Python Dependencies

We use a pip-compile based workflow for adding Python dependencies. If you would like to add a Python dependency, instead of editing the securedrop/requirements/*.txt files directly, please:

  1. Edit the relevant *.in file in securedrop/requirements/

  2. Use the following shell script to generate securedrop/requirements/*.txt files:

    make update-pip-dependencies

  3. Commit both the securedrop/requirements/*.in and securedrop/requirements/*.txt files

Connecting to VMs via SSH over Tor

Ubuntu/Debian setup

You will need to install a specific variant of the nc tool in order to support the -x option for specifying a proxy host. Mac OS X already runs the OpenBSD variant by default.

sudo apt-get install netcat-openbsd

After installing netcat-openbsd and appending the Tor config options to your local torrc, you can export the environment variable SECUREDROP_SSH_OVER_TOR=1 in order to use vagrant ssh to access the staging or prod instances over Tor. Here is an example of how that works:

$ vagrant up --provision /prod/     # restricts SSH to Tor after final reboot
$ vagrant ssh-config app-prod       # will show incorrect info due to lack of env var
Host app-prod
  HostName 127.0.0.1
  User vagrant
  Port 2201
  UserKnownHostsFile /dev/null
  StrictHostKeyChecking no
  PasswordAuthentication no
  IdentityFile /home/conor/.vagrant.d/insecure_private_key
  IdentitiesOnly yes
  LogLevel FATAL

$ vagrant ssh app-prod -c 'echo hello'   # will fail due to incorrect ssh-config
ssh_exchange_identification: read: Connection reset by peer

$ export SECUREDROP_SSH_OVER_TOR=1       # instruct Vagrant to use Tor for SSH
$ vagrant ssh-config app-prod            # will show correct info, with ProxyCommand
Host app-prod
  HostName l57xhqhltlu323vi.onion
  User vagrant
  Port 22
  UserKnownHostsFile /dev/null
  StrictHostKeyChecking no
  PasswordAuthentication no
  IdentityFile /home/conor/.vagrant.d/insecure_private_key
  IdentitiesOnly yes
  LogLevel FATAL
  ProxyCommand nc -x 127.0.0.1:9050 %h %p

$ # ensure ATHS values are active in local Tor config:
$ cat *-aths | sudo tee -a /etc/tor/torrc > /dev/null && sudo service tor reload
$ vagrant ssh app-prod -c 'echo hello'   # works
hello
Connection to l57xhqhltlu323vi.onion closed.

If SECUREDROP_SSH_OVER_TOR is true, Vagrant will look up the ATHS URLs for each server by examining the contents of app-ssh-aths and mon-ssh-aths in ./install_files/ansible-base. You can manually inspect these files to append values to your local torrc, as in the cat example above. Note that the cat example above will also add the ATHS info for the Journalist Interface, as well, which is useful for testing.

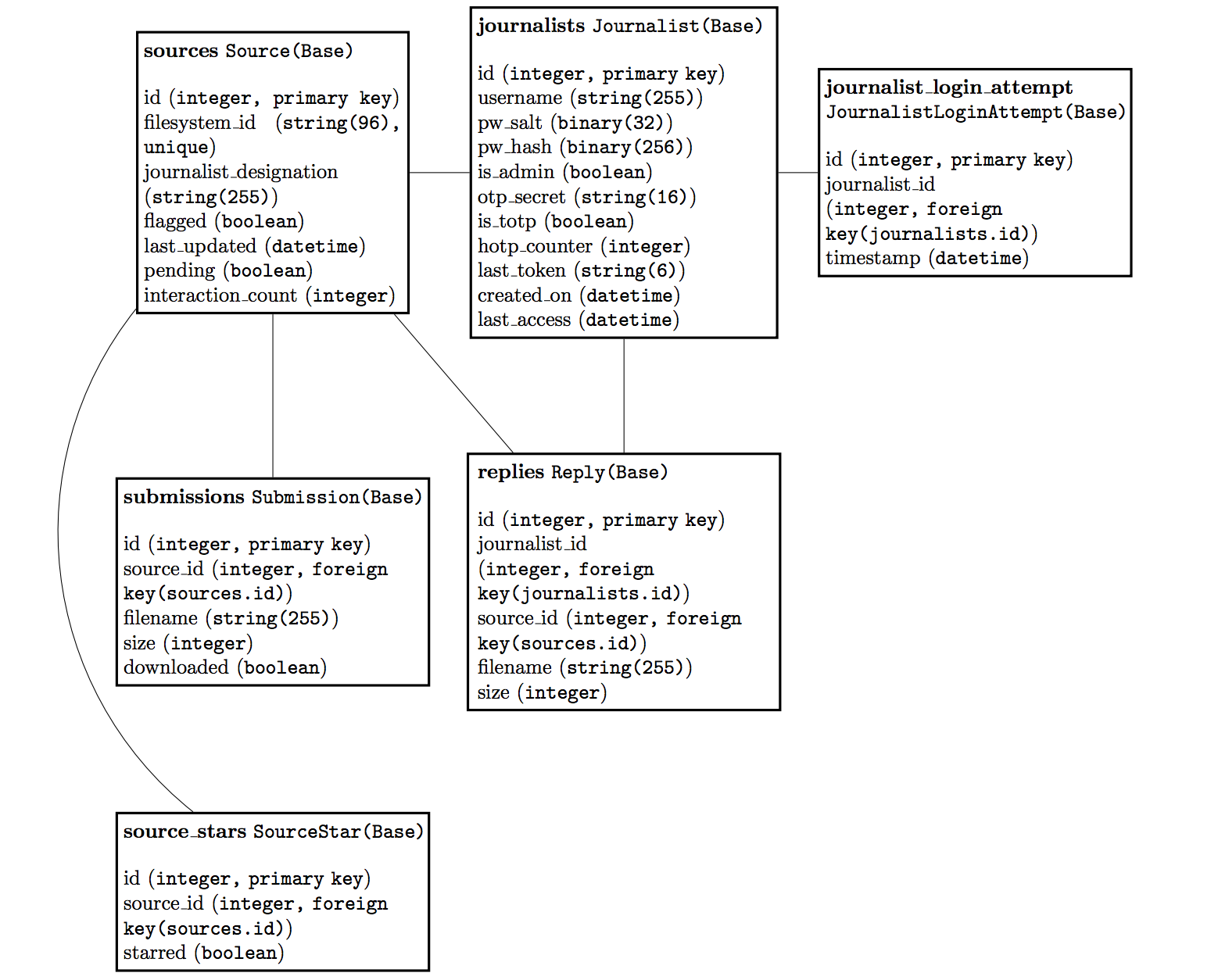

Architecture Diagrams

Some helpful diagrams for getting a sense of the SecureDrop application architecture are stored here, including a high-level view of the SecureDrop database structure:

../_images/securedrop-database.png
